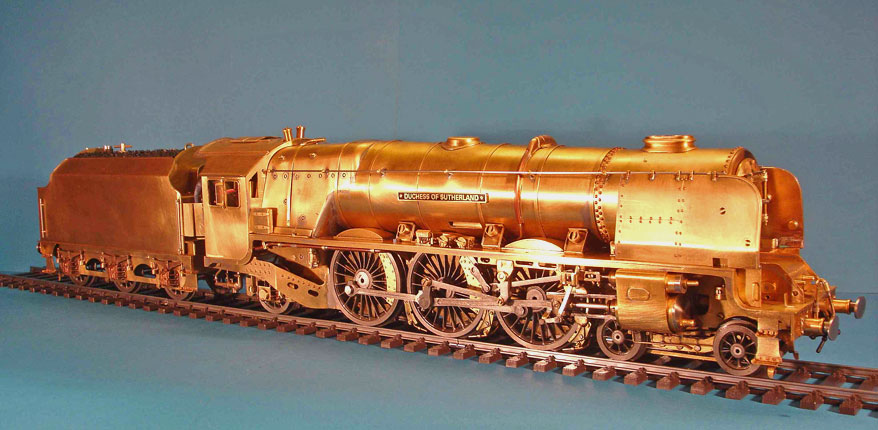

Model photo
Photograph courtesy of Jürgen Pietsch. 2011

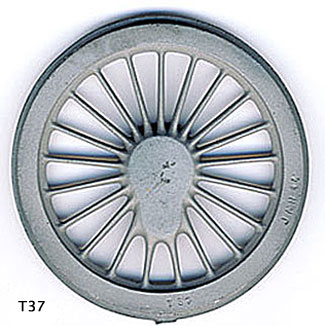

Scan of casting T35   Scan of casting T37   Scan of casting T36   Scan of casting T38
CAST IRON WHEEL CASTINGS
for L.M.S 4-6-2 Duchess at 10 mm/ft


A full set consists of 4 x T35 leading, 6 x T37 driving, 2 x T36 trailing and 6 x T38 tender wheels.

Suitable for Gauge One Fine or Standard

Dimensions measured from No 6233 at Bressingham in 1994


The prototype driving wheel weights are surface mounted plates, and are not cast in.

Links:   Home.   Casting prices and stock: T35, T36, T37, T38.   Wheel data: T35, T36, T37, T38.   LMS loco sets price list.

Full size for 103 dpi screens.   Bare weight c. 1582 gr.
