10 mm/ft scale
T35
LMS bogie wheel

3′ 0″ diam., 9 oval spokes, vee inner rim, 4″ apparent tread, 6″ tyre width.
Hub 9½″ face dia., 1½″ out from the tyre.

Source: Duchess of Sutherland measured direct at Bressingham, Oct 1994.

Casting: 30.0 mm tread dia., 23.4 mm i/d, hub 1.1 mm out from the tyre.
Tyre widths for exact scale models at 1:32, 6″ = 4.76 mm.

Casting prices and stock . LMS loco sets, price list

Scan of a casting in sets for a LMS 4-6-2 Duchess class, LMS 4-6-2 Princess class.

Scan of casting T35

Photo of Duchess bogie

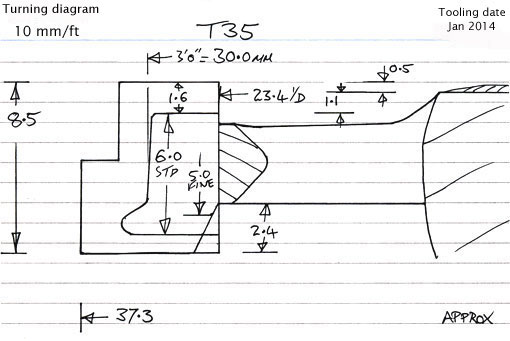

Cross section diagram of casting T35
