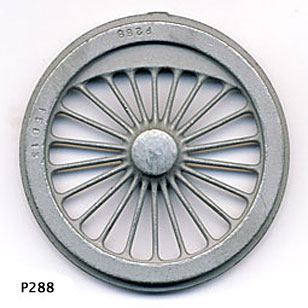

Scan of castings P286     Scan of casting P288
WHEEL CASTINGS
for LBSC 2-2-2 G class at 1:32


A full set consists of 10 x P286 carrying and tender wheels and 2 x P288 driving wheels.

Suitable for Gauge One Fine or Standard.

Links:   Home.   Casting prices and stock: P286, P288.   Wheel data: P286, P288.   LBSC loco sets price list.

Full size for 103 dpi screens.   Bare weight c. 800 gr.

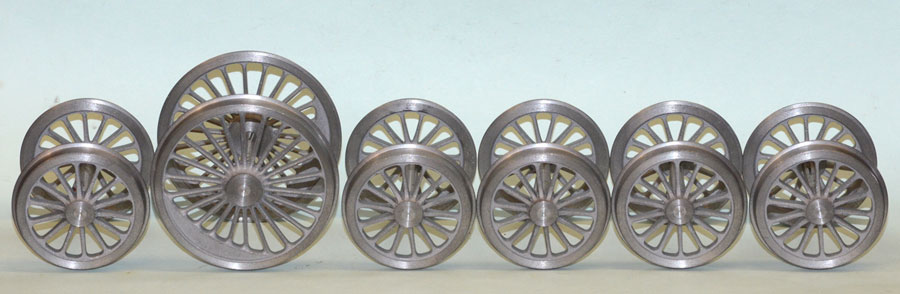

Scan of machined castings
A full set turned to 6.0 mm wide at the tyres (for G1MRA standard track) and 1.5 mm deep flanges (as in G1 Fine). The drivers are to a partly worn diameter (63.7 mm dia over the flanges) to give clearance under the splashers.
