LBSC 0-4-2T D class trailing wheel.

4′ 6″ diam., 14 rect spokes, rect rim, apparent tread 4″.
Hub 11½″ face dia., 2¾″ out from the tyre.

Casting: 42.9 mm tread dia., 36.3 mm i/d., hub 2.1 mm out from the tyre.

Casting prices and stock . LBSC loco sets, price list

Scan of castings in a set for a LBSC 0-4-2 Gladstone class, 0-4-2 D tender class, 2-2-2 G class, 0-4-2T D tank class.

Scan of casting P286   Scan of casting P286fs

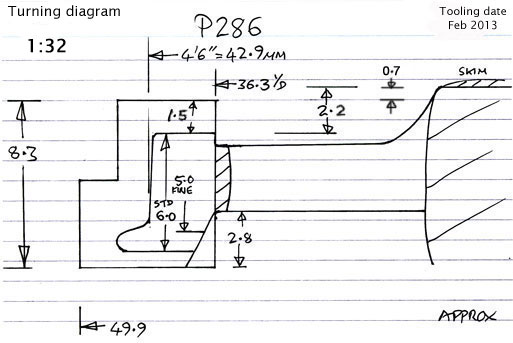

Cross section diagram of casting P286
