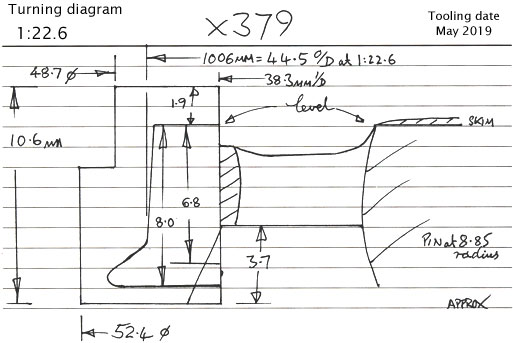

1006 mm (3′ 3.6″) diam., 10 rect spokes, rectangular inner rim, apparent tread 3″.
Hub 10¼″ face dia., level with the tyre, pin in line at 200 mm (7.9″).

Casting: 44.5 mm tread dia., 38.3 mm i/d., hub level with the tyre, pin at 8.85 mm.

Suitable for the Gauge 3 Society 2010 minimum tyre width of 6.8 mm, or the earlier standard of 8.0 mm.
