3′ 6¼″ diam., 10 oval spokes, humped inner rim, apparent tread 3½″.
Hub 10″ face dia., pin in line at 9″.

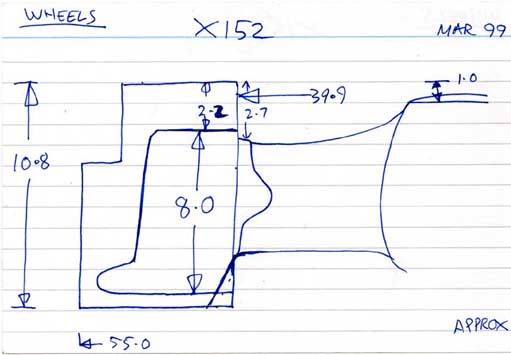

Casting: 44.4 mm tread dia., 39.9 i/d, hub 1.2 mm out from the tyre, pin at 10.1 mm.

Gauge 3 loco set prices . Casting prices and stock

Suitable for the Gauge 3 Society 2010 minimum tyre width of 6.8 mm, or the earlier standard of 8.0 mm.
