1:22.6, Gauge 3
X149
GWR carrying wheel.

3′ 8″ diam., 10 oval spokes, rectangular inner rim. Tyre width 5¾″.
Hub 11″ face diam., ¾″ out from the tyre.

Source: works drawings for the 1400 class, lots 279, 287 and 288.

Casting: 49.5 mm tread diam., 40.4 mm i/d., hub 0.8 mm out from the tyre.

Gauge 3 loco set prices . Casting prices and stock

Scan of a casting in sets for GWR 4-4-0 Bulldog . 0-4-2T 14xx .

Suitable for the Gauge 3 Society 2010 minimum tyre width of 6.8 mm, or the earlier standard of 8.0 mm.

Scan of casting X149

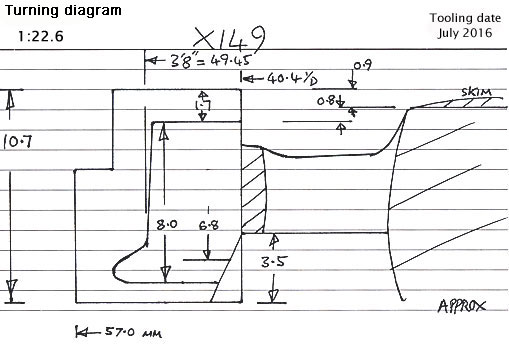

Cross section diagram of casting X149
