4′ 2″ tread diam., 12 oval spokes, rectangular inner rim, apparent tread 4¾″.
Hub 12¾″ face dia., 1″ out from the tyre.

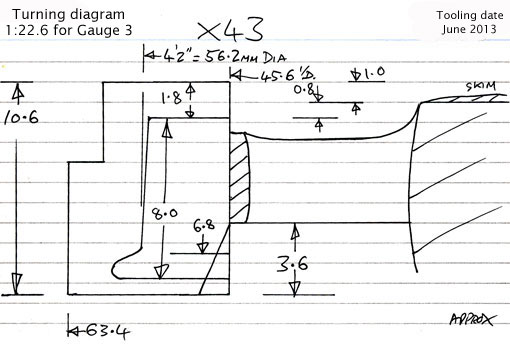

Casting: 56.2 mm dia., 45.6 mm i/d, hub 0.8 mm out from the tyre.

Gauge 3 loco set prices . Casting prices and stock

Scan of a casting in sets for LNER Gresley A1/A3 .

Suitable for the Gauge 3 Society 2010 minimum tyre width of 6.8 mm, or the earlier standard of 8.0 mm.
