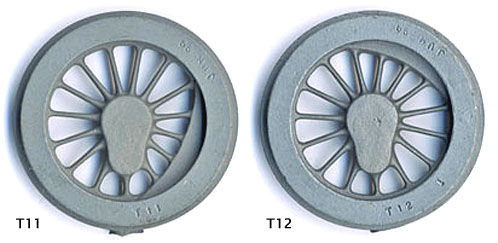

Scan of castings T11 and T12 Scan of casting T78
WHEEL CASTINGS
for GER 0-6-2T L77/LNER N7/2,3 at 10 mm/ft
Locomotives with 3'6" pony truck wheels.


Complete sets consist of 2 x T11 mid, 4 x T12 outer driving wheels and 2 x T78 trailing wheels.

See Reeves web site for live steam drawings from English Mechanics.

GA drawing at NRM: No. 4/GW/12017/E, plan, side and end elevations.

Suitable for Gauge One Fine or Standard.

Links:   Home.   Casting prices and stock: T11, 12, T78.   Wheel data: T11, 12, T78.   GER sets, price list.

Full size for 103 dpi screens.   Bare weight c. 760 gr.

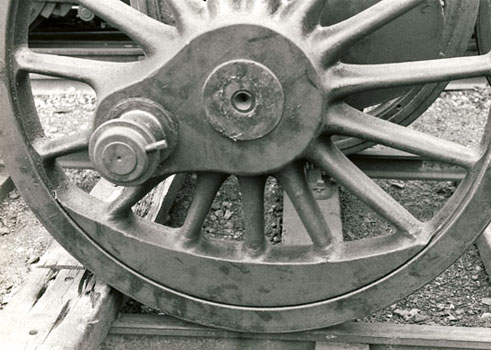

Photo of prototype drivers

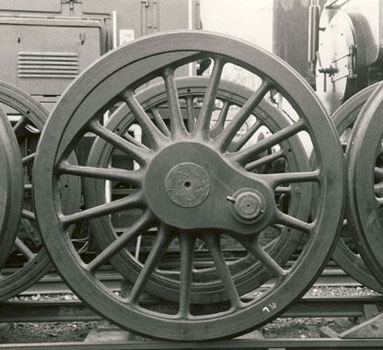

Photo of prototype drivers
N7 No 999 at Chappell, April 1994.


Validated as HTML5

19 June 2021
