10 mm/ft scale
T78
GE 0-6-2T L77/LNER N7/GE plain wheels.

3′ 6″ diam., 10 oval spokes, humped inner rim.
Hub 12½″ face dia., 2¼″ out from the hub.

Source: preserved N7 0-6-2T at Cappel in 1995.

Casting: 37.5 mm tread dia., 27.4 i/d, hub1.9 mm out from the tyre.

Casting prices and stock . GER loco sets, price list

Scan of a casting in a set for a GER 0-6-2T L77/LNER N7/GE

Scan of casting T78

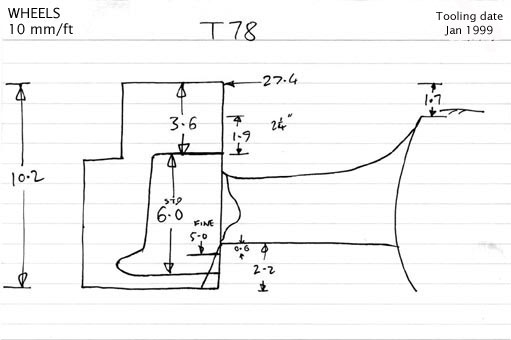

Cross section diagram of casting T78
