Scan of casting T135
WHEEL CASTINGS
for BR Diesel class 02 at 10 mm/ft


A full set consists of 4 of T135 driving wheels
Suitable for Gauge One Fine or Standard.

Links:   Home.   Casting prices and stock: T135.   Wheel data: T135  .   BR loco sets price list.

Note: some references give the wheel diameter as 3′ 4″ as in Marston's text. I am accepting 3′ 6″ dia. as in Marston's reproduced weight diagram, and in Hall & Fox, Preserved Locomotives of British Railways (1995). 3′ 6″ implies new tyres+tread overlap of just over 4″ thickness on top of my actual measured internal diameter of 33½″.

Full size for 103 dpi screens.   Bare weight c. 200 gr.

Photo of a preserved locomotive   Photo of a prototype wheel

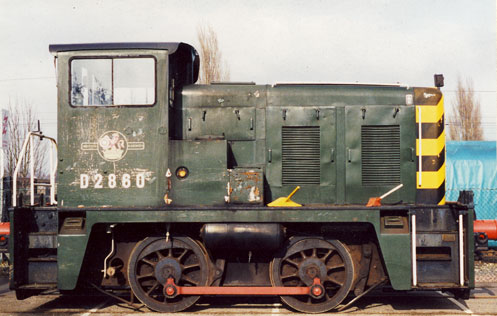

D2860 at York Railway Museum, 2001.
