Scan of casting P73  Scan of casting P74
WHEEL CASTINGS for BR 2-6-4T class 4MT at 1:32
and for the LMS 2-6-4 class 4MT with slightly thicker tyres.

Complete sets consist of 6 x P74 leading and trailing wheels and 6 x P73 driving wheels.

Also suiting the later Fairburn version, slightly modified with shorter frames and less weight for greater route availability.

Suitable for Gauge One Fine or Standard

The prototype driving wheel weights are surface mounted plates, and are not cast in.

Links:   Home.   Casting prices and stock: P73, P74.   Wheel data: P73, P74.   BR loco sets price list.
Rewheeling a Finescalebrass model

Full size for 103 dpi screens.   Bare weight c. 738 gr.

Photo of prototype driving wheel           Photo of prototype bogie wheel
80151 at Chappel in 1995.

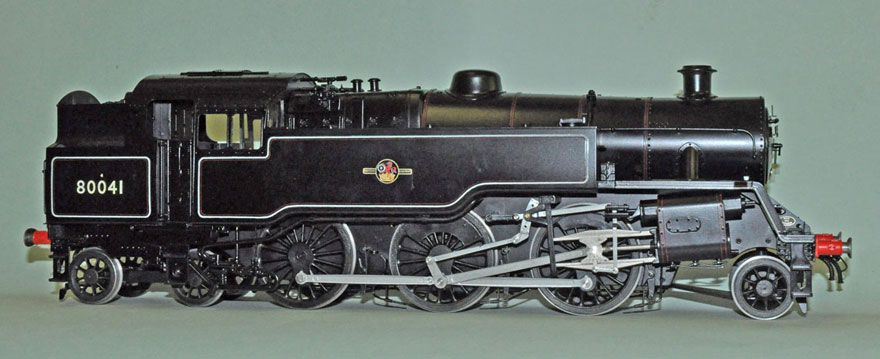

Photo of model with Fine wheels
A Finescalebrass/Sang Cheng model fitted with wheels turned to the G1MRA Fine standard at 42.0 mm back to back.

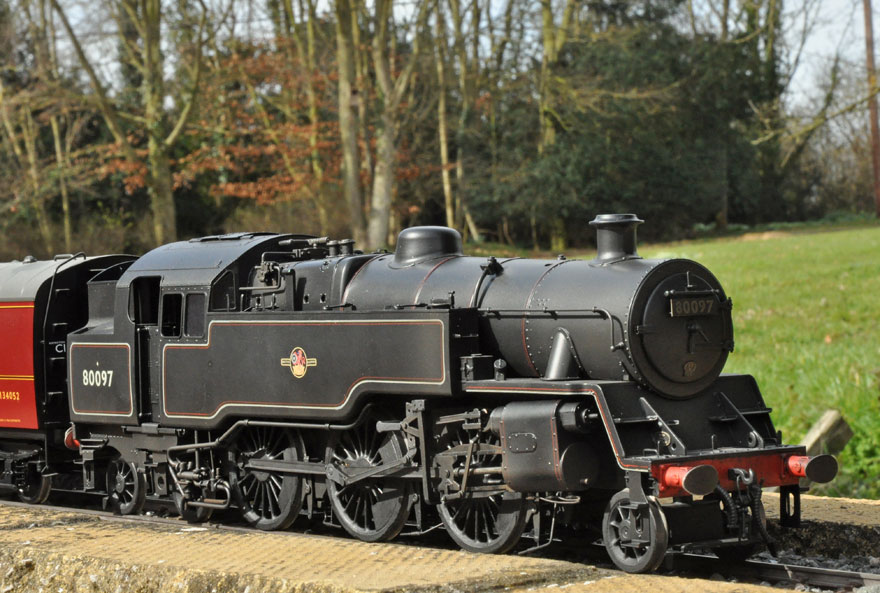

Photo of model with scale wheels
A Finescalebrass/Sang Cheng model fitted with wheels turned to scale at 42.5 mm back to back.     March 2011

Rewheeling a Finescalebrass model
