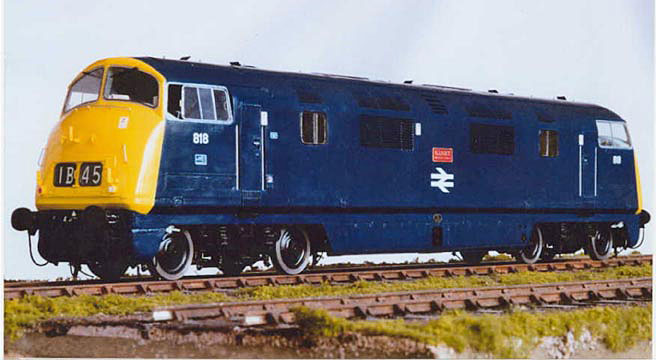

Photograph of a model loco
A model made up from one of Fred Phipps kits.

Kits from: Fred Phipps, 4a Anson Road, London NW2 3UT.   Tel: 0203 620 6357,   e-mail: fphippsz@yahoo.co.uk

Scan of casting P132

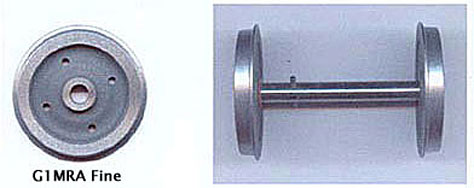

Scan of castings machined to G1 Fine

Castings turned to Gauge One Fine on 3/16" axles with telescopic joints
for fitting gearbox and bearings.

WHEEL CASTINGS
for BR class 42/43 Warship Diesels at 1:32


A full set of 8 of P132 castings is £116.56 plus delivery.
Suitable for Gauge One Fine or Standard

TURNED SETS, insulated one side and mounted on telescopic axles as shown are £222.15 per set of 4 pairs plus delivery.

Deduct £3.60 if no insulation is required. Deduct £8.20 if axles are not required.

CHOOSE: Gauge One Fine, 42 mm back to back with 1.5 mm deep flange,
or Gauge One Standard, 40 mm back to back with 1.5 or 2.0 mm deep flanges
(A dead scale flange of about 0.94 mm deep with no taper on the back can also be applied).

Links:   Home.   Casting prices and stock: P132.   Wheel data: P132.   BR sets, price list.

Casting full size for 103 dpi screens.
