10 mm/ft scale
T234, T235
LMS 2-6-0 Crab driving wheel.

5′ 6″ dia., 17 oval spokes, rectangular inner rim, apparent tread 4½″.
Hub 17″ face dia., ½″ out from the tyre, pin in line at 13″.

Castings: 55.0 mm tread dia., 47.8 i/d., hub 0.4 mm out from the tyre, pin at 10.8 mm.

Casting prices and stock . LMS loco sets, price list

Scan of the castings in a set for a LMS 2-6-0 Crab

Scan of castings T234 and T235

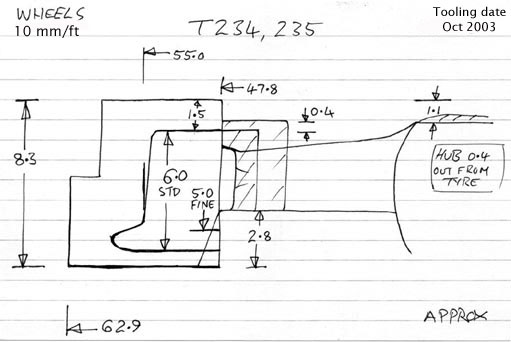

Cross section diagram of castings T234 and T235
