10 mm/ft scale
T229
GWR 2-8-0T 42xx and at least some 2-8-0T 52xx driving wheel.

4′ 7½″ diam., 14 oval spokes, rectangular inner rim,
Hub 11½″ face dia., 15″ at widest, pin in line at 15″, 1½″ out from the tyre.

Source: works drg.; Russell, A pictorial record of Great Western Engines, vol. 2, p. 92-95, photographs.
P. 181 photo of the 5275-94 series converted to a 2-8-2T No 72xx.

Casting: 46.25 mm tread dia., 39.9 mm i/d., hub 1.2 mm out from the tyre.

Casting prices and stock . GWR loco sets, price list

Scan of a casting in a set for a GWR 2-8-0T 42xx class . GWR 2-8-0 early 28xx class

Scan of casting T229

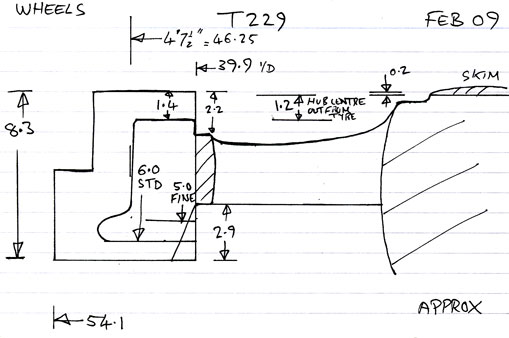

Cross section diagram of casting T229
