10 mm/ft scale
T223, T224
LBSC 4-4-2 Atlantic driving wheels.

6′ 7½″ diam., 20 oval spokes, rectangular inner rim, apparent tread 3¾″.
Hub 18″ face dia., 1″ out from the tyre, pin between at 12″.

Castings: 66.25 mm tread dia., 60.3 mm i/d., hub 0.8 mm out from the tyre, pin at 10.0 mm.

Casting prices and stock . LBSCR loco sets, price list

Scan of castings in a set for a LBSC Atlantic

Scan of castings T223 and T224

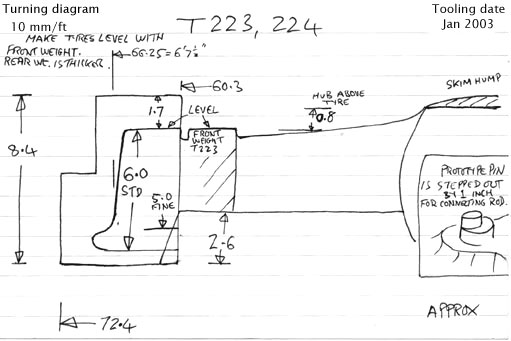

Cross section diagram of castings T223 and T224
