10 mm/ft scale
T189, T190
MR 0-6-0T 1121 and 2441 classes, LMS 0-6-0T 3F Jinty driving wheels.

4′ 7″ diam., 15 oval spokes, rectangular inner rim, apparent tread 4½″.,
Hub 15½″ face dia., 2″ out from the tyre, pin in line at 11″.

Source: No 7406/47406 measured direct at Loughborough and works drgs.

Castings: 45.8 mm tread dia., 38.5 mm i/d., hub 1.9 mm out from the tyre, pin at 9.2 mm.

Casting prices and stock . LMS loco sets, price list

Scan of castings in a set for a MR/LMS 0-6-0T Jinty

Scan of casting T189 Scan of casting T190

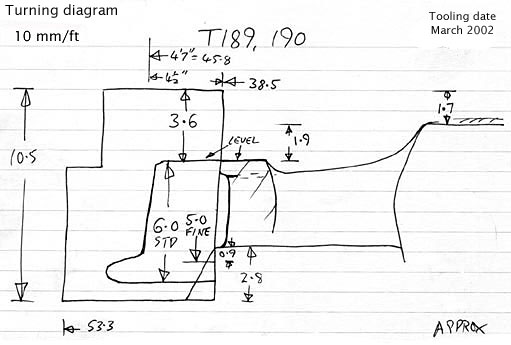

Cross section diagram of castings T189 and T190
