10 mm/ft scale
T163, T164
LSWR 4-4-0 X2 driving wheels.

7′ 1″ diam., 22 oval spokes, hump inner rim, apparent tread 4″.
Hub 16″ face dia., 2″ out from the tyre, pin in line at 13″.

Source: works drawing.

Casting: 70.8 mm tread dia., 64.5 i/d., hub 1.7 mm out from the tyre, pin at 10.8 mm.

Casting prices and stock . LSWR loco sets, price list

Scan of the castings in a set for a LSWR 4-4-0 X2

Scan of castings T163 and T164

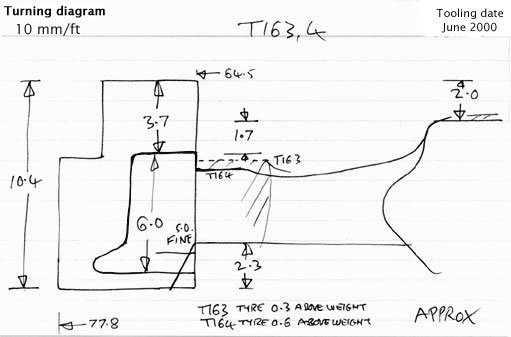

Cross section diagram of castings T163 and T164
