10 mm/ft scale
T162
GWR Dean tender wheel.

4′ 1½″ diam., 12 rectangular spokes, rectangular inner rim, apparent tread 4″.
Hub 12″ face dia., level with the tyre.

Source: works drg in Russell, 1: 179.

Casting: 41.25 mm tread dia., 34.8 mm i/d., hub level with the tyre.

Casting prices and stock . GWR loco sets, price list

Scan of a casting in a set for a GWR Dean Single 2-2-2 as built . 4-2-2 rebuild

Scan of casting T162

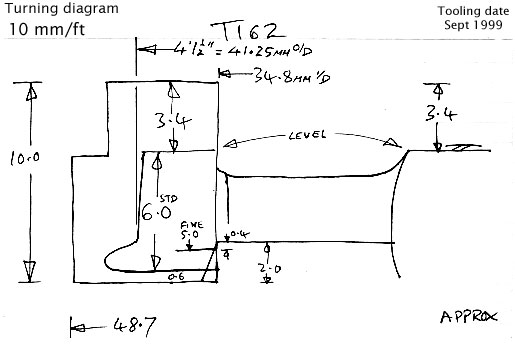

Cross section diagram of casting T162
