10 mm/ft scale
T134
LMS Bogie wheel, suitable for Black Five, 8F, Jubilee, Stanier 2-6-4T 4P etc.

3′ 3½″ diam., 10 oval spokes, vee inner rim, 3½″ apparent tread.
Hub 11″ dia., ½″ out from the tyre.

Source: BR 4-6-0 5MT Black Five No 44806 at Llangollen in 1995, measured direct.

Casting: 32.9 mm tread dia., 26.1 i/d., hub 0.4 mm out from the tyre.

Casting prices and stock . LMS loco sets, price list

Scan of a casting in a set for a LMS 2-8-0 8F, 4-6-0 Black Five with prototype photo.,
4-6-0 Jubilee with prototype photo.

Scan of casting T134

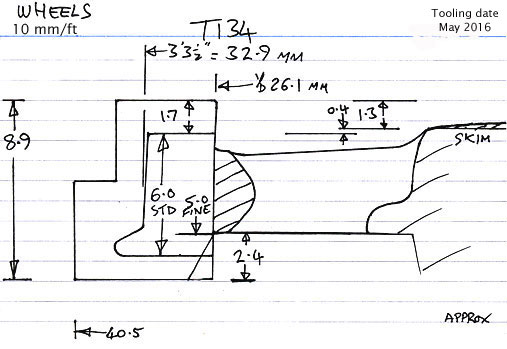

Cross section diagram of casting T134
