T105
LMS 4-6-2 Princess driving wheel.

6′ 6″ diam., 20 oval spokes, vee inner rim, 4″ apparent tread.
Hub 20½″ face dia., central disc 25″ dia., raised by ¾″. Central disc is 2¾″ above the tyre. Pin at 14″.

Source: No. 46203, Princess Margaret Rose measured direct in March 1997 at Swanwick.

Casting: 65.0 mm tread dia., 58.7 i/d., hub centre 2.3 out from the tyre, pin at 11.7 mm.

Casting prices and stock . LMS loco sets, price list

Scan of a casting in a set for a LMS 4-6-2 Princess class.

Scan of casting T105

Cross section diagram of casting T105

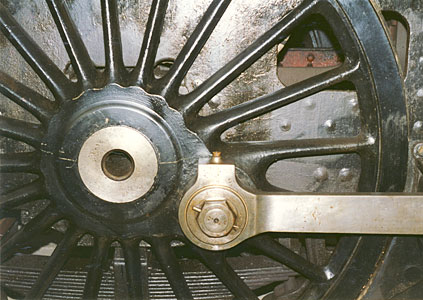

Photo., Princess in 1997.
