10 mm/ft scale
T98
GC 4-6-0 Class 8/LNER B5 plain wheels.

3′ 6″ diam., 10 oval spokes, rectangular inner rim, apparent tread 4″.
Hub 14″ face dia., ½″ out from the tyre.

Casting: 35.0 mm tread dia., 28.6 i/d, hub 0.4 mm out from the tyre.

Casting prices and stock . GC loco sets, price list . MR loco sets, price list

Scan of a casting in a set for a GC 4-6-0 B5 . LBSC 4-4-2 . MR 4-4-0 2606 . MR 4-4-0 Compound

Scan of casting T98

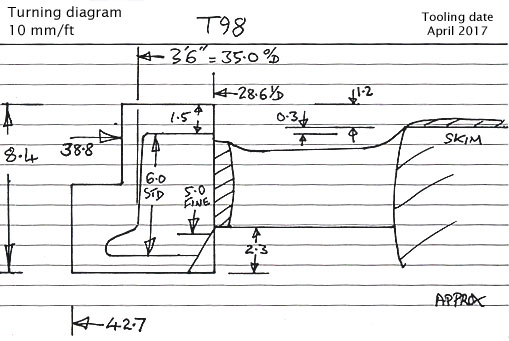

Cross section diagram of casting T98
