10 mm/ft scale
T57, T58
MR 0-4-4T 2228 class and 0-6-0 4F driving wheel.

5′ 3″ diam., 16 oval spokes, rectangular inner rim, 4″ apparent tread.
Hub 15¼″ face dia., 1¾″ out from the tyre, pin in line at 11″.

Source: 4F No 44027 measured direct at Butterley in May 1995.

Casting: 52.5 mm tread dia., i/d 45.7 mm, hub 0.9 mm out from the tyre, pin at 9.2 mm.

Casting prices and stock . MR loco sets, price list

Scans of castings in sets for MR 0-6-0 4F . MR 0-4-4T 2228 class

Scan of casting T57 and T58

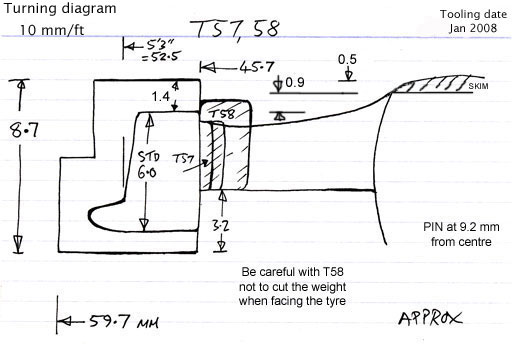

Cross section diagram of castings T57 and T58
