10 mm/ft scale
T51
LMS tender wheel.

3′ 6½″ diam., 10 oval spokes, vee shaped inner rim, apparent tread 4″.
Hub 13″ face dia., ½″ out from the tyre.

Casting: 35.4 mm tread dia., i/d 28.6 mm., hub 0.4 mm out from the tyre, (0.9 mm for 2P bogies).

Casting prices and stock . LMS loco sets, price list

Scan of a casting in a set for a LMS 2-6-0 2MT

Scan of casting T51

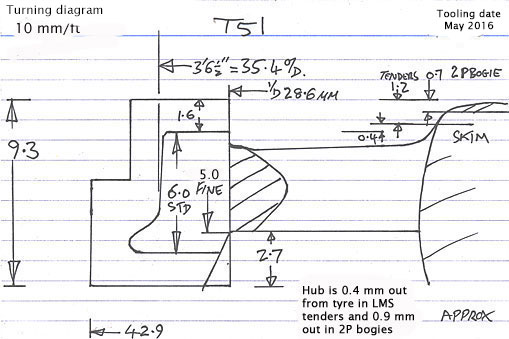

Cross section diagram of casting T51
