10 mm/ft scale
T48, T49
BR class 08 Diesel driving wheels.

4′ 6″ diam., 14 oval spokes, vee inner rim, 4¾″ apparent tread, 5½″ tyre width.
Hub 13″ face dia., ½″ out from the tyre. Outside cranks.

Source: No 08.772, D3940 measured direct at Chappel in March 1995.

Casting: 45.0 mm. tread dia., 36.6 i/d., hub 0.2 mm out from the tyre.

Casting prices and stock . BR loco sets, price list

Full sets information

Scan of castings T48 andT49

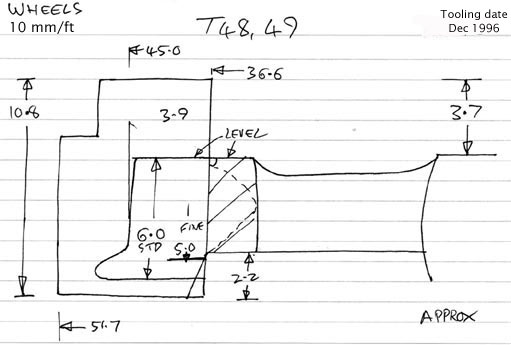

Cross section diagram of T48 and T49
