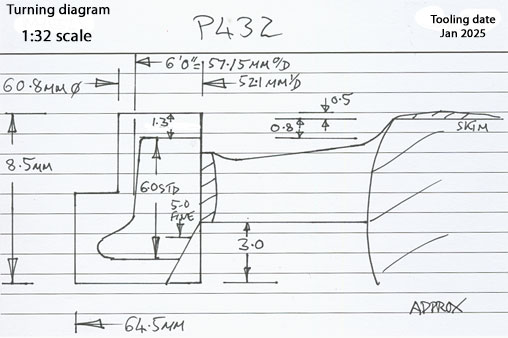

6′ 0″ diam., 18 rectangular spokes, rect inner rim, apparent tread 3″.
Hub 14″ face dia., 1″ out from the tyre (estimated). Inside crank.

Source: Practical Mechanics, Locomotive Magazine.

Casting: 57.2mm tread dia., 52.4 mm i/d., hub 0.8 mm out from the tyre.

Gauge 1 loco set prices . Casting prices and stock

Scan of a casting in a set for LBSC Jenny Lind
