P402, 403
LBSC 0-4-2 Gladstone class driving wheels.

6′ 6″ diam., 22 rect spokes, rect rim, apparent tread 4″.
Hub 14″ face dia., 4″ out from the tyre, pin in line at 9″.

Casting: 61.9 mm tread dia., 55.5 mm i/d., hub 3.2 mm out from the tyre, pin at 7.1 mm.

Casting prices and stock . LBSC loco sets, price list

Scan of castings in a set for a LBSC 0-4-2 Gladstone class

Scan of castings P402   Scan of castings P403

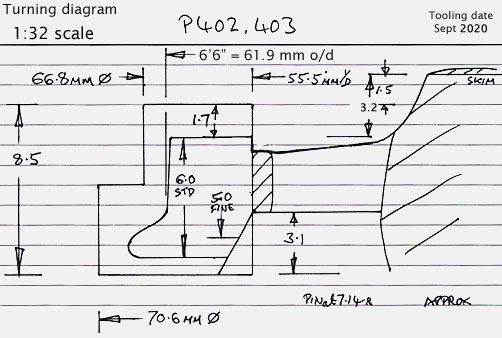

Cross section diagram of castings P402, 3
