LNWR Webb tank 2-4-2T driving wheels.

4′ 8½″ diam., 13 rect spokes, rectangular inner rim, apparent tread 4″.
Hub 16½″ face dia., 1½″ out from the tyre, pin between at 9″.

Castings: 44.8 mm tread dia., 38.4 mm i/d., hub 1.2 mm out from the tyre, pin at 7.25 mm.

Casting prices and stock . LNWR loco sets, price list

Scan of castings in a set for a LNWR 2-4-2T Webb tanks

Scan of casting P376   Scan of casting P377

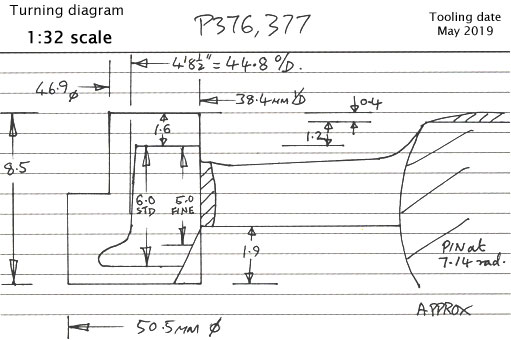

Cross section diagram for casting P376
