1:32 scale
P322, P323
LSWR 4-4-0 class T3 driving wheels.

6′ 7″ diam., 22 oval spokes, hump inner rim, apparent tread 4¼″.
Hub 16¾″ face dia., 2¼″ out from the tyre, pin at 13″.

Sources: Preserved T3, No 120 measured direct at York in 2001.

Casting: 62.7 mm tread dia., 56.0 mm i/d., hub 1.8 mm out from the tyre.

Casting prices and stock . LSWR loco sets, price list

Scan of a casting in a set for a LSWR 4-4-0 T3

Scan of casting P322 Scan of casting P323

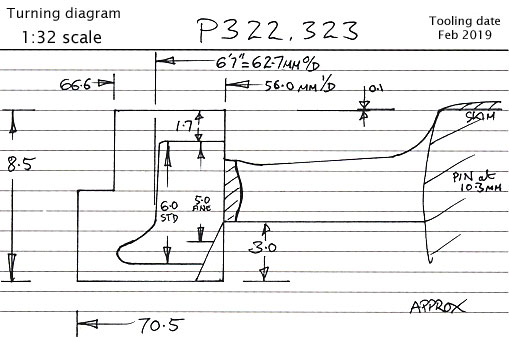

Cross section diagram of casting P322
