1:32 scale
P284, 285
LBSC 0-4-2T D class driving wheels.

5′ 6″ diam., 18 rect spokes, rect rim, apparent tread 4″.
Hub 15½″ face dia., 2¾″ out from the tyre, pin in line at 9″.

Casting: 52.4 mm tread dia., 45.8 mm i/d., hub 2.2 mm out from the tyre, pin at 7.1 mm.

Casting prices and stock . LBSC loco sets, price list

Scan of castings in a set for a LBSC 0-4-2 D tender class . 0-4-2T D class

Scan of castings P284, 285

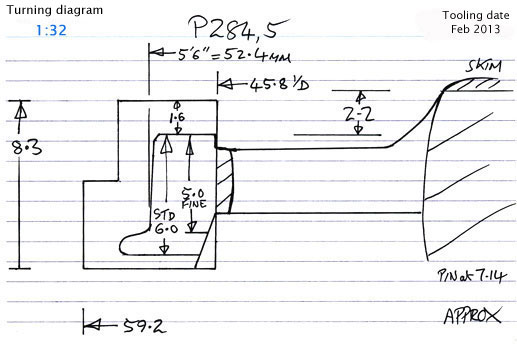

Cross section diagram of castings P284, 285
