1:32 scale

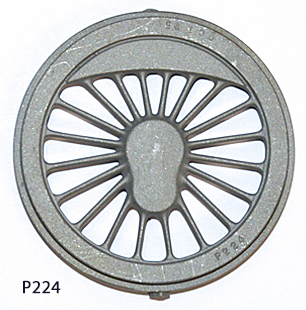

P223, P224
LBSC 4-4-2 Atlantic driving wheels.

6′ 7½″ diam., 20 oval spokes, rectangular inner rim, apparent tread 3¾″.
Hub 18″ face dia., 1″ out from the tyre, pin between at 12″.

Castings: 63.1 mm tread dia., 56.8 mm i/d., hub 0.8 mm out from the tyre, pin at 9.5 mm.

Casting prices and stock . LBSC loco sets, price list

Scan of castings in a set for a LBSC Atlantic

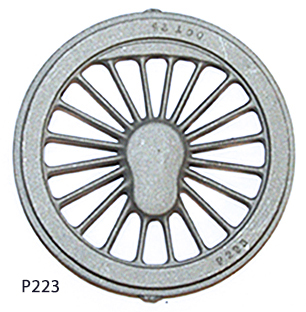

Scan of casting P223

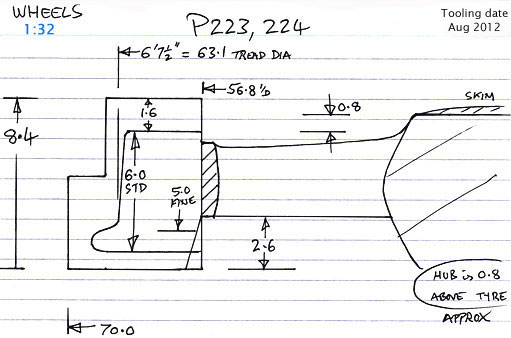

Cross section diagram for casting P223
