1:32 scale
P167
MR bogie wheels.

3′ 9½″, 12 oval spokes, rectangular inner rim, apparent tread 3″ - later 3′ 10½″ diam. with thicker tyres.
Hub 11″ face dia., ½″ out from the tyre.

Casting: 36.5 mm tread dia., 31.8 mm i/d., hub 0.4 mm out from the tyre.

Casting prices and stock . MR loco sets, price list

Scan of a casting in a set for a MR Johnson 4-2-2 115 class

Scan of casting P167

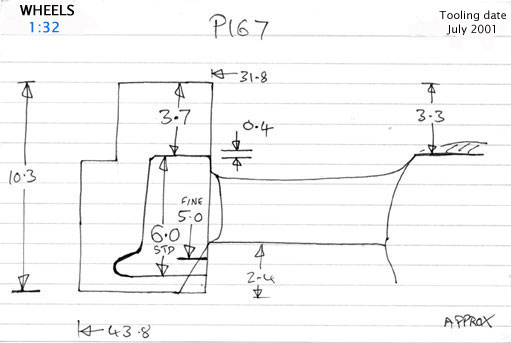

Cross section diagram of casting P167
