GWR 0-6-0PT 57xx, 64xx, 94xx classes.

4′ 7½″ diam., 14 oval spokes, rectangular inner rim, 3½″ apparent tread.
Hub 15″ face dia., pin between at 10″, hub 2½″ out from the tyre.

Source: No 7754, made by North British Loco Co in 1935, measured direct at Llangollen in February 1995.

Casting: 44.05 mm tread dia., 38.5 i/d., hub 2.0 mm out from the tyre, pin at 7.9 mm.

Casting prices and stock . GWR loco sets, price list

More information and prototype photo.

Scan of casting P45

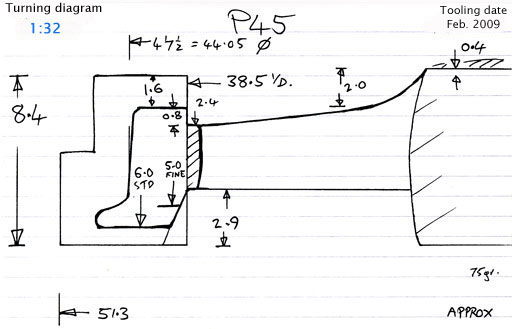

Cross section diagram of casting P45

Cross section diagram of casting P45

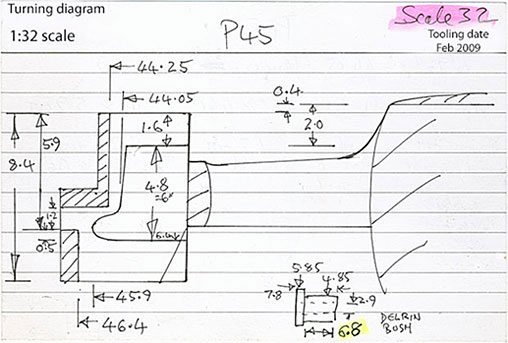

Workshop card for Scale 32 with an insulating bush for a Sang Cheng/Bachman loco.

Cross section diagram of casting P45

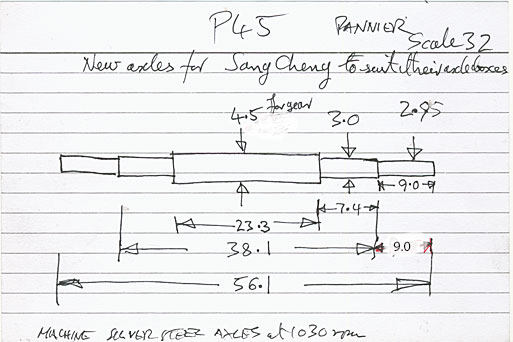

Workshop card for an axle.
