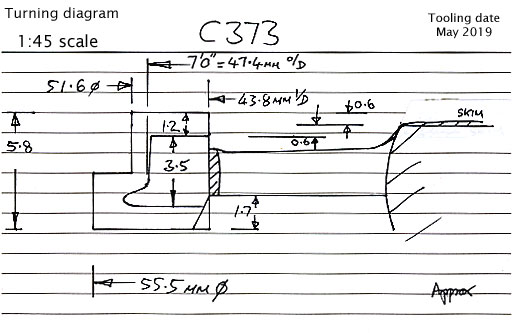

This example shows a tyre width of 3.5 mm for Gauge 0 Fine.
For other standards remove more or less metal from the back of the wheel to give your chosen tyre width.
7′ 0″ diam., 22 rect spokes; rectangular inner rim, apparent tread 3½″.
Hub 15¼″ face dia, 1″ out from the tyre.
Sources: works drawings.
Casting: 47.4 tread dia., 43.8 i/d, hub 0.6 mm out from the tyre.
Casting prices and stock . Netherlands, loco sets, price list
Scan of a casting in a set for a Netherlands NS 1300 class 2-4-0.
7 Sep 2017
