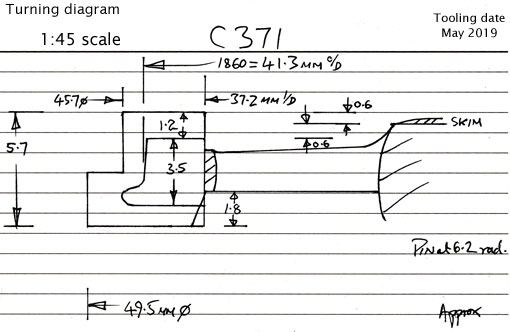

This example shows a tyre width of 3.5 mm for Gauge 0 Fine.
For other standards remove more or less metal from the back of the wheel to give your chosen tyre width.
6′ 1.2″ (1860 mm) diam., 18 rect spokes; rectangular inner rim, apparent tread 4″.
Hub 400 mm face dia, 25 mm out from the tyre, pin at 279 mm.
Sources: works drawings.
Casting: 41.3 tread dia., 37.2 i/d, hub 0.6 mm out from with the tyre, pin at 6.2 mm.
Casting prices and stock . Netherlands, loco sets, price list
Scan of a casting in a set for a Netherlands HSM 74-98, 116-125/NS 1000 class 2-4-0.
