1:45
C365, C366
Driving wheels for Netherlands 2-4-0 SS 300/NS 1300 class (later) and for 4-4-0 SS 800/NS 1700 class.

7′ 0″ diam., 22 oval spokes, rectangular inner rim, apparent tread 3½″, tyre width 5¾″.
Hub 15¼″ face dia., 1″ out from the tyre.

Source: works drawing.

Casting: 47.4 mm tread dia., 43.7 mm i/d., hub 0.6 mm out from the tyre.

Casting prices and stock . Netherlands loco sets, price list

Scan of a casting in sets for:
SS 800/NS 1700 class 4-4-0   and for 2-4-0 SS 300 class, NS 1300 class. (Later, with oval spokes).

Scan of casting C365 Scan of casting C366

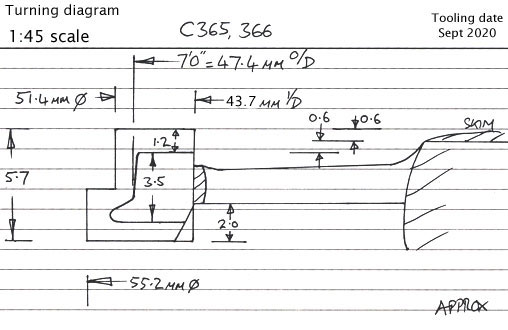

Cross section diagram of castings C365, 366
This example shows a tyre width of 3.5 mm for Gauge 0 Fine.
For other standards remove more or less metal from the back of the wheel to give your chosen tyre width.
