1:45 scale
C254, C255, C256, C348
Dutch State Railways 700 class 4-6-0 and 1200 class 4-6-4T driving wheels.

1850 mm, 6′ 0.8″ diam., 18 oval spokes, rectangular inner rim, apparent tread 4″, tyre width 145 mm.
Hub 14½″ face dia., 15 mm out from the tyre, pin between spokes. Note that the coupling rods have one inch less throw than the connecting rods: the driven wheel pin is off-set at half way, driven wheel pin inner half at 12″, outer half at 13″, coupled wheels pins all at 12″.

Sources: works drawing, photographs.

Castings: 41.1 mm tread dia., 36.6 i/d, hub 0.3 mm out from the tyre, pin at 6.9 mm.

Casting prices and stock . Netherlands, loco sets, price list

Scans of castings in a set for a Dutch State Railways 700 class 4-6-0 and in a set for NS 1200 class 4-6-4T

Scan of casting C254   Scan of casting C255

Scan of casting C256   Scan of casting C348

C254, Front driver.   C255, Mid driver.   C256, Rear Driver   C348, Front driver, 1200 class

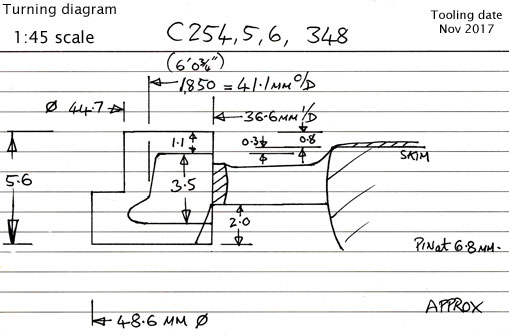

Cross section diagram of castings C254, 255, 256, 348
This example shows a tyre width of 3.5 mm for Gauge 0 Fine.
For other standards remove more or less metal from the back of the wheel to give your chosen tyre width.
