B430
NE 4-2-2 J class trailing wheels.

4′ 7″ diam., 14 oval spokes, apparent tread 4″.
Hub 14″ face dia., 1″ out from the tyre.

Casting: 32.1 tread dia., 27.4 i/d., hub 0.6 mm out from the tyre.

Casting prices and stock . NE loco sets, price list

Scan of a casting in a set for a NE 4-2-2 J class.

Scan of casting B430

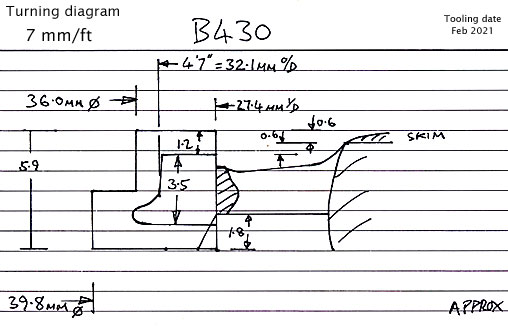

Cross section diagram of casting B430
This example shows a tyre width of 3.5 mm for Gauge 0 Fine.
For Scale7 remove more metal from the back of the wheel to give a tyre thickness of 3.2 mm instead of 3.5 mm.
