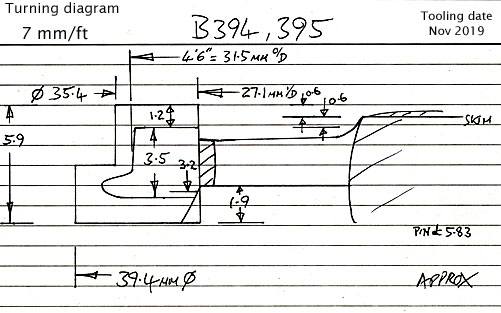

This example shows a tyre width of 3.5 mm for Gauge 0 Fine.
For Scale7 remove more metal from the back of the wheel to give a tyre thickness of 3.2 mm instead of 3.5 mm.
4′ 6″ diam., 13 rectangular spokes, apparent tread 3¾″.
Hub 16″ face dia., 1″ out from the tyre. Pin at 10″
Casting: 31.5 tread dia., 27.1 i/d., hub 0.6 mm out from the tyre, pin at 5.8 mm.
Casting prices and stock . Industrial loco sets, price list
Scan of castings in a set for a Kitson 0-6-0T.
27 Mar 2013
