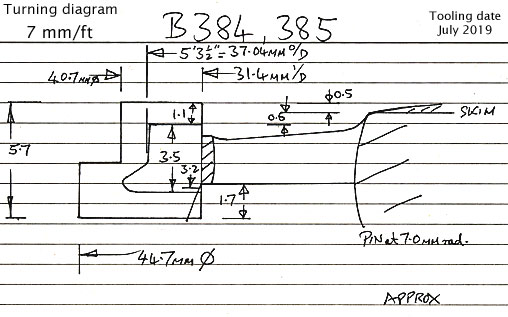

This example shows a tyre width of 3.5 mm for Gauge 0 Fine.
For Scale7 remove more metal from the back of the wheel to give a tyre thickness of 3.2 mm instead of 3.5 mm.
5′ 3½″ diam., 15 rectangular spokes, apparent tread 4½″.
Hub 17″ face dia., 1¾″ out from the tyre. Pin at 12″
Casting: 37.0 tread dia., 31.4 i/d., hub 0.6 mm out from the tyre, pin at 7.0 mm.
Casting prices and stock . HR loco sets, price list
Scan of castings in a set for a HR 4-4-0 Skye Bogie.
27 Mar 2013
