6′ 7″ diam., 22 oval spokes, humped inner rim, 4″ apparent tread, tyre width 5½″,
hub 18″dia., 1″ out from the tyre, pin between at 14″.

Sources: D.L. Bradley, LSWR Locomotives, The Urie Classes page 150 works drawings.
O.S. Nock, The Southern King Arthur Family, pages 31-33, detailed works drawings.

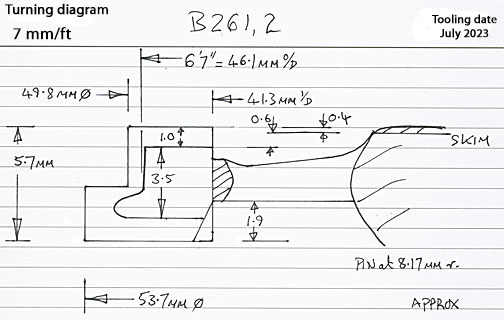

Casting: mm tread dia., mm i/d., mm scale tyre width, hub mm out from the tyre, pin at mm.

Casting prices and stock . LSWR loco sets, price list

Scan of a casting in a set for a LSWR N15, King Arthur class
