4′ 7½″ diam.,14 oval spokes, rectangular inner rim, apparent tread 4¼″.
Hub 15½″ face dia., pin in line at 15″, central boss is 1½″ out from the tyre.

Source: No 7200 measured direct.

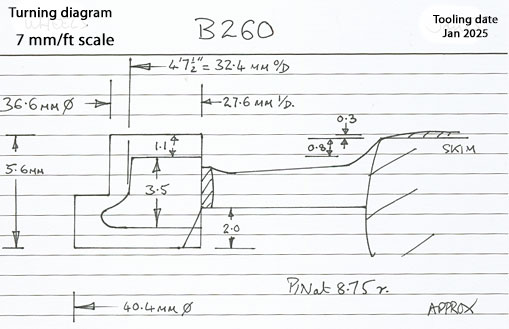

Casting: 32.4 tread dia., 27.4 i/d., hub 0.8 mm out from the tyre, pin at 8.75 mm.

Casting prices and stock . GWR loco sets, price list

Scan of a casting in a set for a GWR 2-8-2T 72xx class
