3′ 3″ diam., 10 oval spokes, rim with a raised central hump, 4½″ apparent tread, tyre width 5⅜″.
Hub 12½″ face dia., 2¼″ out from the tyre.

Source: No 1572 (=No 8572) measured direct at Weybourne and GER Soc drg.

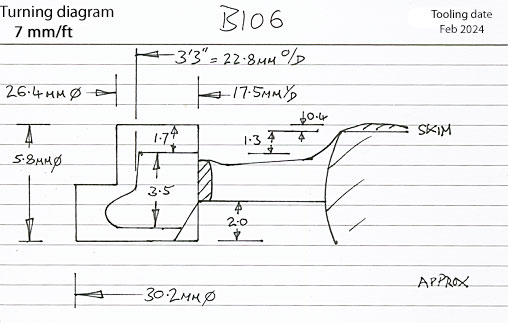

Casting: 22.8 mm. tread dia., 17.5 mm i/d., hub 0.4 mm out from the tyre.

Casting prices and stock . GER loco sets, price list

Scan of a casting in a set for a GE 4-6-0 S69/LNER B12/3
