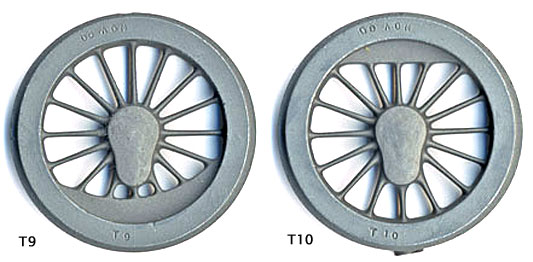

Scan of castings T9 and T10 Scan of casting T14
WHEEL CASTINGS
for GER 2-4-2T M15, G69/LNER F4-6 at 10 mm/ft
The later locomotives built between 1903-1909 with cast steel wheels

Complete sets consist of 2 x T9 front, 2 x T10 rear driving wheels and 4 x T14 carrying wheels.

Sources: Lyn D. Brooks, 'Updating Buckle' in Journ. GER Soc., 129:12-19 (Jan 2007).

Suitable for Gauge One Fine or Standard.

Links:   Home.   Casting prices and stock: T9, 10, T14.   Wheel data: T9, 10, T14.   GER sets, price list.

Full size for 103 dpi screens.   Bare weight c. 750 gr.
