WHEEL CASTINGS
for GER 2-4-0 T26 / LNER E4 at 10 mm/ft
Locomotives with oval spoke steel drivers.


Complete sets consist of 2 x T34 pony, 2 x T32 front and 2 x T33 rear driving and 6 x T31 tender wheels.

Suitable for Gauge One Fine or Standard.

For locos with leading wheels having oval spokes use T31 instead of T34. In that case the tread/overlap is ½″ less, so machine the tread dia at 1 inch less, (4′ 0″ instead of 4′ 1″), and scales at 40.0 mm. dia.

Links:   Home.   Casting prices and stock: T31, T32, 33, T34.   Wheel data: T31, T32, 33, T34.   GER loco sets price list.

Full size for 103 dpi screens.   Bare weight c. 1090 gr.

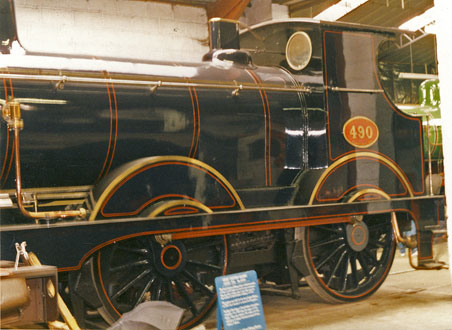

Photograph of the preserved locomotive

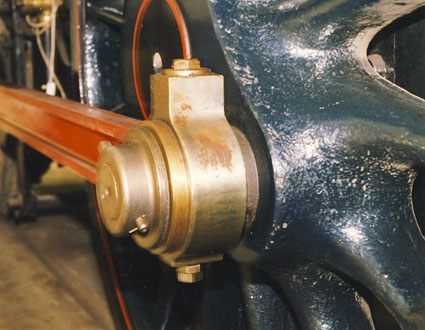

Photo of prototype driving wheel

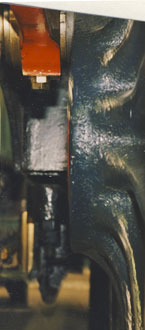

Photo of prototype driving wheel
Photo of prototype driving wheel

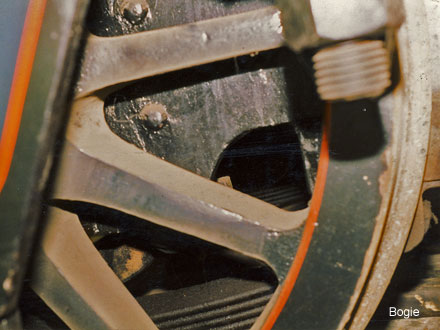

Photo of prototype bogie wheel

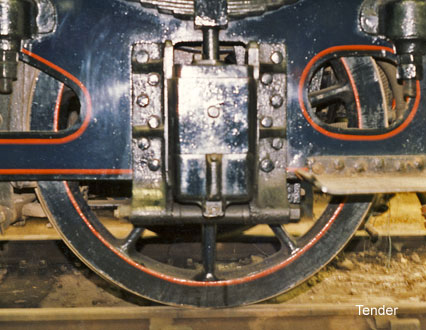

Photo of prototype tender wheel
T26/LNER E4 at Bressingham in 1994
