1:32 scale

MTH Deisel locomotive wheels
Replacement wheels in mild steel

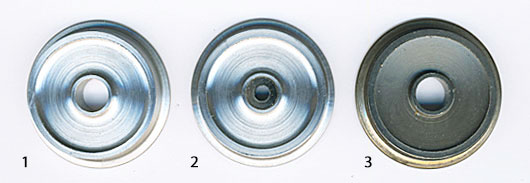

Scan of MTH 32.7 discs

The wheels shown are 32.7 mm tread diameter for the Dash-8 locos.

1, 2. Substitute wheels machined from mild steel before and after fitting the delrin insulating bush.
The tyre profile is cut with a Gauge 3 form tool.
The bush is bored to 4.0 mm dia. which reduces slightly as it is pressed into the wheel.

3. Original MTH wheel with rubber traction tyre.

Other tyre tyre widths and profiles can be provided - Gauge One Fine, Standard or Scale 32 to suit other track standards.

Link to: U.S.A Gauge One wheels prices.
