FORM TOOLS for 3½″ gauge

HOME


Form tools, prices and stock.

Form tool drawing, 3 1/2 gauge exact scale

Form tool, 3 1/2 x 1.8

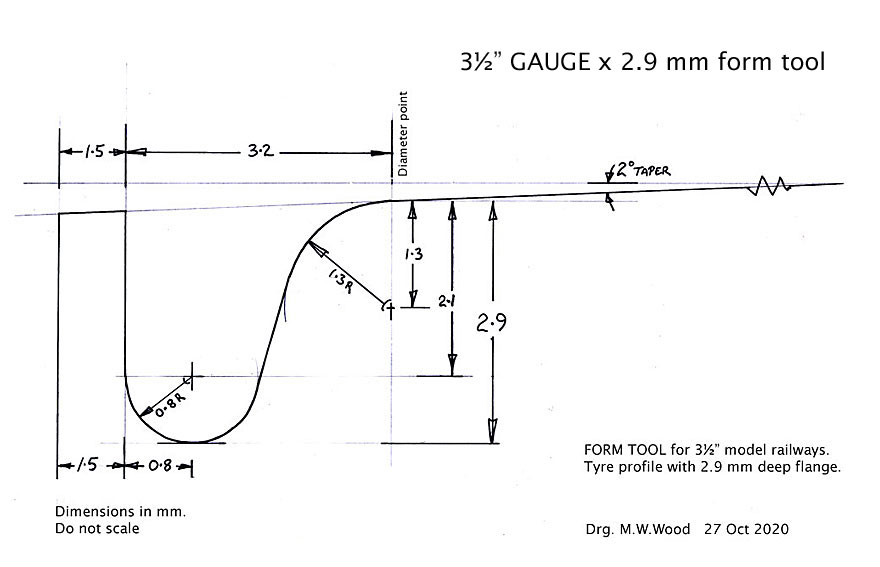

Form tool drawing, 3 1/2 gauge x 2.9 mm
These dimensions match the summary of the standards previously on the SFMES website, and are almost exactly the same as those of Martin Evans in Tubal Cain's Model Engineers Handbook. (I cannot see a link to the technical library on their new web site, https://fmes.org.uk

Form tool, 3 1/2 x 2.9
