Suitable for:
the SFMES 13.6 mm, (0.535″) tyre width and 3.2 mm, (0.130″) flange depth.
or the GL5 standard of 12.7 mm, (1/2″) tyre width and 3.97 mm (5/32, 0.156″) flange depth
For 5½″ at this scale use 12.4 mm, 0.487″.
7′ 0″ diam., 22 oval spokes, rectangular inner rim, apparent tread 3½″, tyre width 5¾″.
Hub 15¼″ face dia., 1″ out from the tyre.
Source: works drawing.
Casting: 189 mm tread dia., 173 mm i/d., hub 2.25 mm out from the tyre.
Casting prices and stock . 5 inch gauge loco sets, price list
Scan of a casting in a sets for SS 300/NS 1300 class 2-4-0 and SS 800/NS 1700 class 4-4-0.

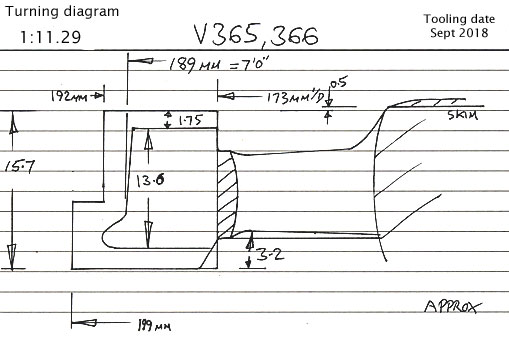

SCROLL DOWN FOR THE TURNING DIAGRAM
24 Sept 2018
