1 1/2″:1 ft, 1:11.29 for 5 inch gauge
V253
Trailing and tender wheels for Netherlands 2-4-0 SS 300/NS 1300 class and for 4-4-0 SS 800/NS 1700 class.

4′ 0″ diam., 12 oval spokes, rectangular inner rim, apparent tread 3½″, tyre width 5¾″.
Hub 13″ face dia., ¼″ out from the tyre (including face plate).

Source: works drawing L 37387.

Casting: 108 mm tread dia., 93.0 i/d., hub 1.0 mm out from the tyre.

Casting prices and stock . 5 inch gauge loco sets, price list

Scan of a casting in a sets for SS 300/NS 1300 class 2-4-0 and SS 800/NS 1700 class 4-4-0.

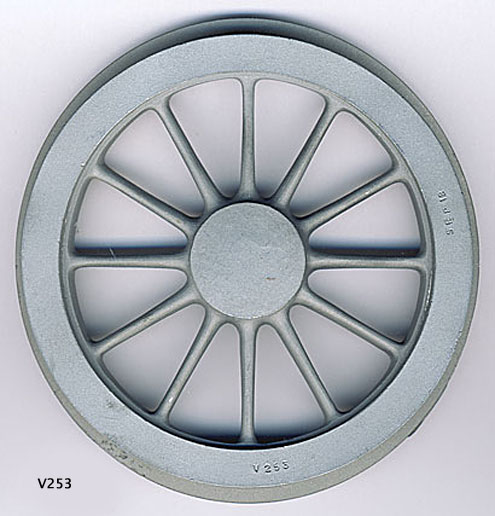

Scan of casting V253

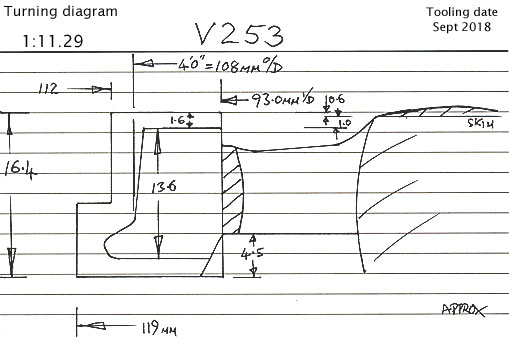

Cross section diagram of casting V253
Suitable for:
the SFMES 13.6 mm, (0.535″) tyre width and 3.2 mm, (0.130″) flange depth.
or the GL5 standard of 12.7 mm, (1/2″) tyre width and 3.97 mm (5/32, 0.156″) flange depth
For 5½″ at this scale use 12.4 mm, 0.487″.
