Suitable for:
the SFMES 13.6 mm, (0.535″) tyre width and 3.2 mm, (0.130″) flange depth.
or the GL5 standard of 12.7 mm, (1/2″) tyre width and 3.97 mm (5/32, 0.156″) flange depth
For exact 5½″ at this scale use 12.4 mm, 0.487″.
3′ 3½″ diam., 10 oval spokes, vee inner rim, apparent tread 3½″.
Hub 16″ face dia., 5/8″ out from the tyre
Casting: 88.9 mm tread dia., 72.6 i/d., hub 1.4 mm above the tyre.
5 inch gauge loco set prices . Casting prices and stock

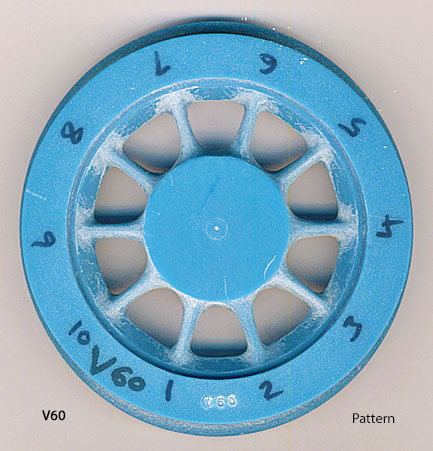

Scan of a casting in a set for BR 4-6-2 Britannia
27 Mar 2013
